Description of ESP32S NodeMCU Development Board :

ESP32S NodeMCU Development Board created by Nodee MCU to evaluate the ESP-WROOM-32 module. It has an ESP32 microcontroller. It Boats Wifi, Bluetooth, Ethernet and Low Power Support all In a Single-chip.

Flash Layout:

ESP32 module has an internal flash organized in a single flash. And also contain pages of 4096 bytes each. The start address of the flash is 0x00000. Many areas of flash addresses are reserved for ESP32 IDF SDK and Zerynth VM. There are two different layouts based on the presence of BLE support ESP32S NodeMCU Board price is also effective.

ESP32S NodeMCU Development Board Summary

Microcontroller: Tensilica 32-bit Single-/Dual-core CPU Xtensa LX6
Operating voltages are 3.3V
Input Voltage is between 7-12V
Digital I/O Pins (DIO) are 28
Analog Input Pins (ADC) is 8
Analog Outputs Pins (DAC) is on pin 2
UARTs pin on 3
SPIs are on 2
I2Cs is on 3
Flash Memory is: 4 MB
SRAM memory is: 520 KB
Clock Speed is: 240 Mhz
Wi-Fi: IEEE 802.11 b/g/n/e/i:
- Integrated TR switch, balun, LNA, power amplifier and matching network
- WEP or WPA/WPA2 authentication, or open networks

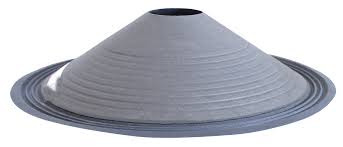

15" SPEAKER CONE - 50mm HOLE
